Files and configurations
Inspect document information and the derived configuration structure.
Information about your open file, in one place.
Inspect the active document’s information, configurations, custom properties, cut lists and tables.

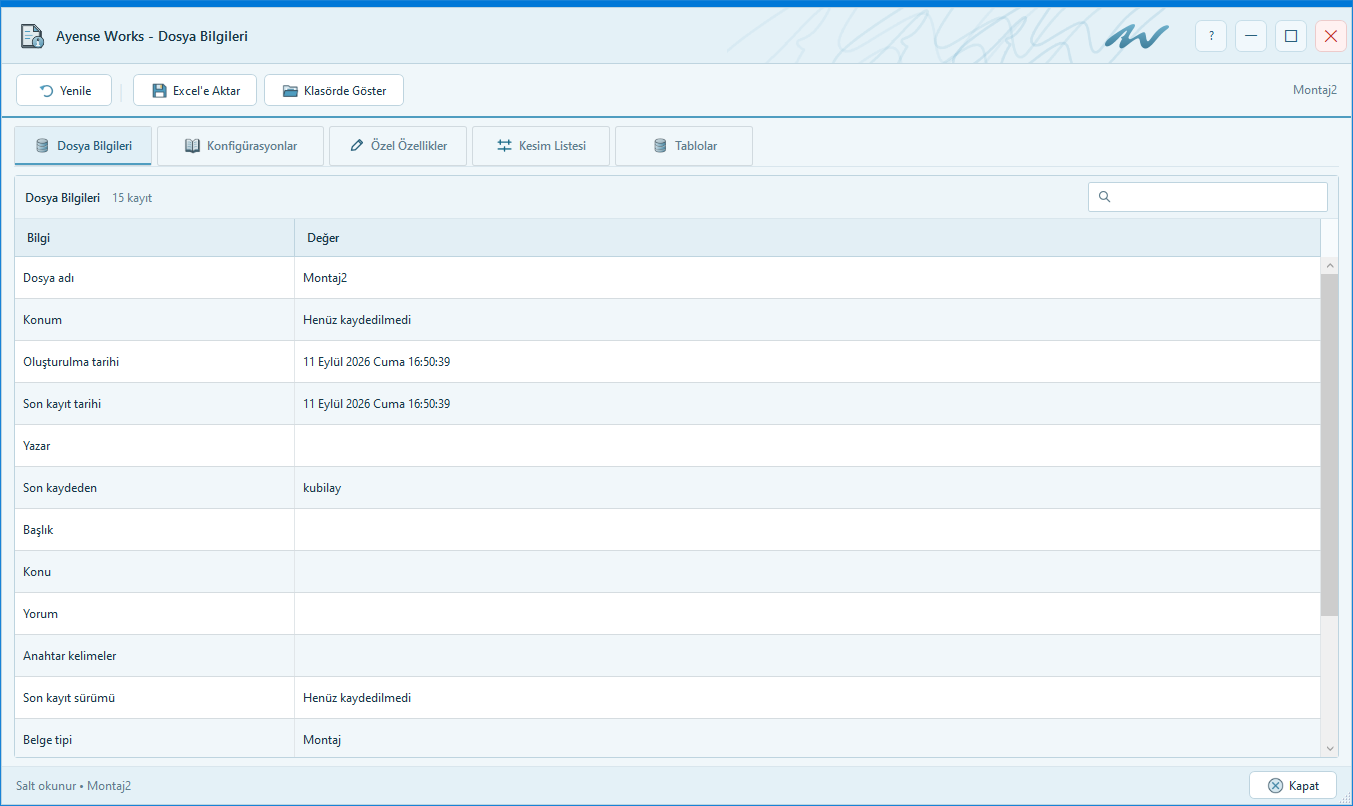

File InformationAyense WorksExplore the workspace.
Enlarge the image to see the details.
Screenshots show the original Turkish application interface.
File Information
How does it help?
Custom properties
See property names, types, text expressions and evaluated values together. Change configuration scope.
Cut lists and tables
Inspect document cut lists and attached tables, and copy the cell information you need.
How to use it
- 1
Open a SOLIDWORKS document.
- 2
Choose File Information.
- 3
Inspect the relevant tab and configuration.
