Sheet Metal Flat Patterns / SettingsYour sheet metal. Your production rules.
Define production standards before exporting. Apply consistent orientation, marking and output choices to every part.

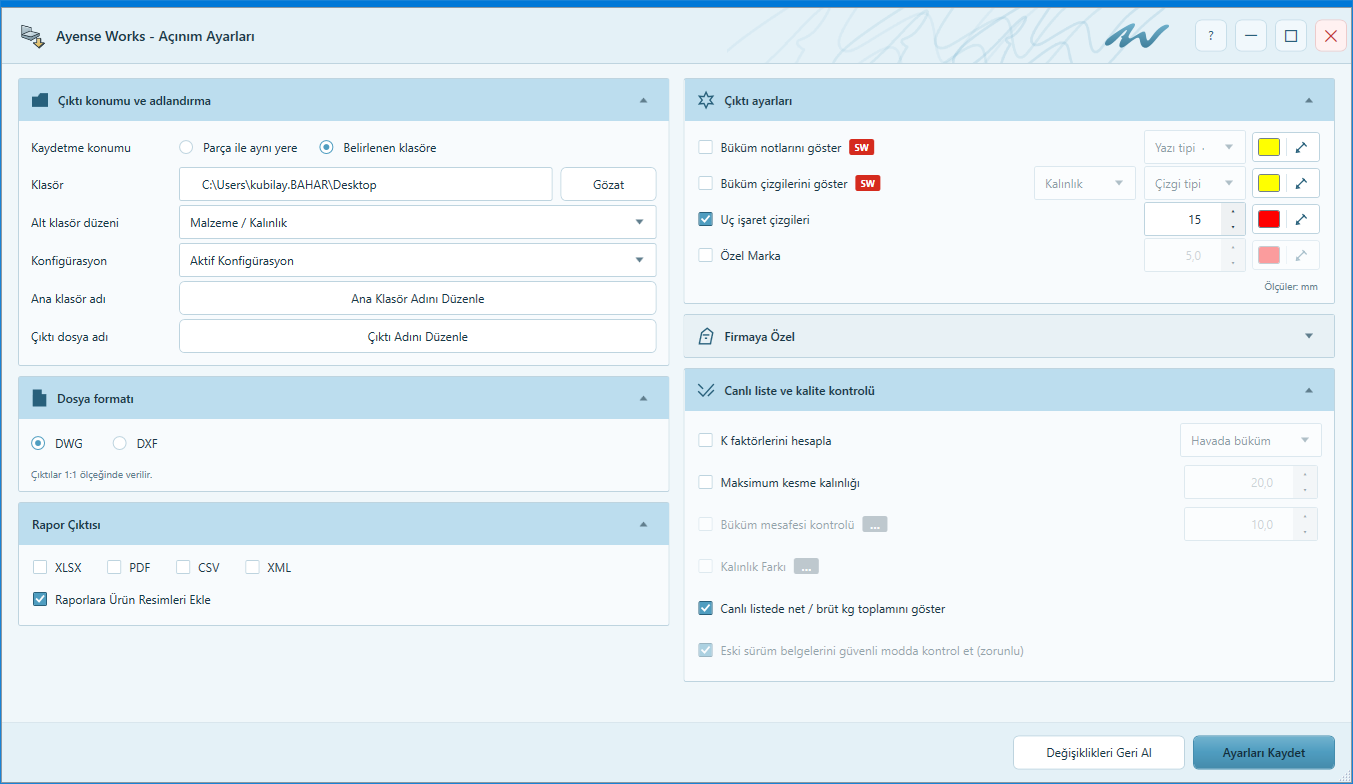

Explore the workspace.
Enlarge the image to see the details.
Screenshots show the original Turkish application interface.
01
Orientation and bend checks
Choose how sheet metal is unfolded for your production process.
02
Marking
Place the information the workshop needs directly on the flat pattern.
03
Output and reports
Create cutting files and the review list from the same operation.
04
Live tracking
See what is happening while parts are being processed.
See it in a real workflow.
Back to the homepage workflowActual application recording · shortened for presentation.
